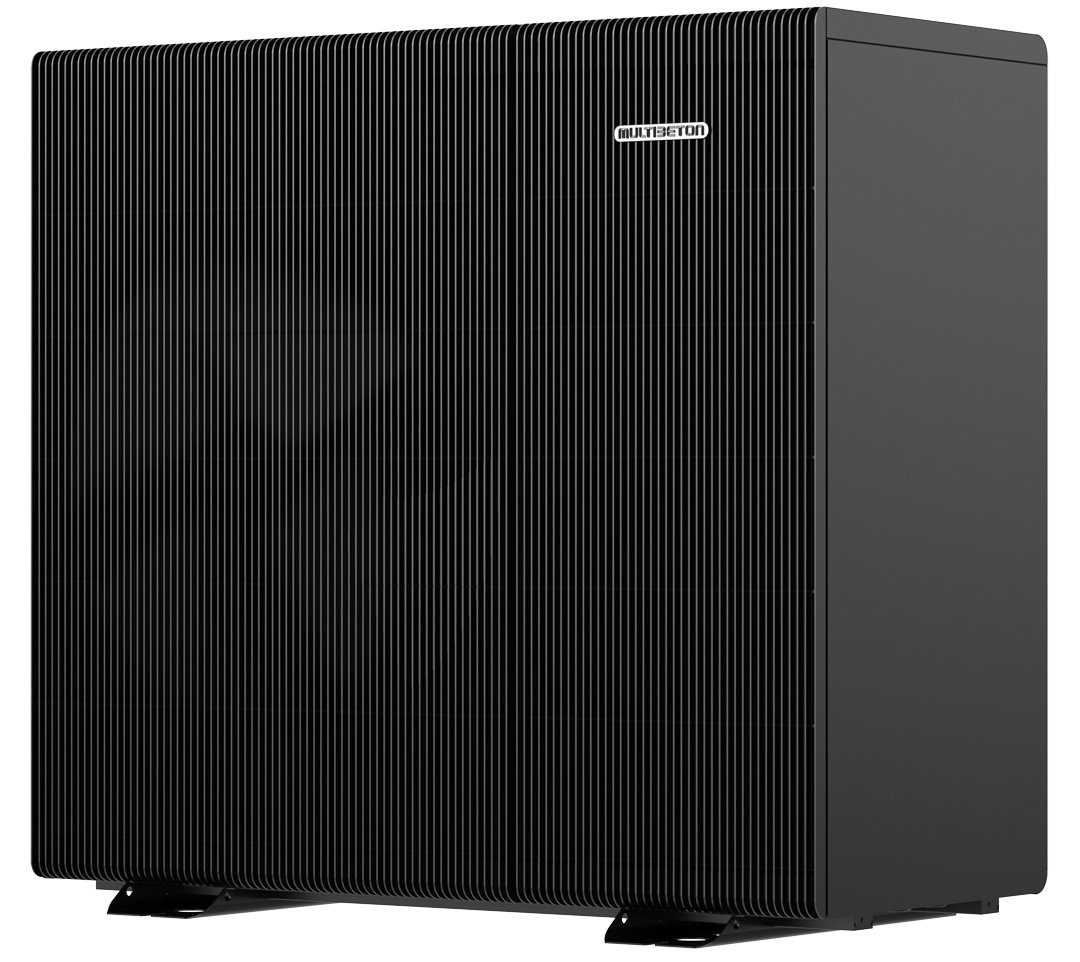

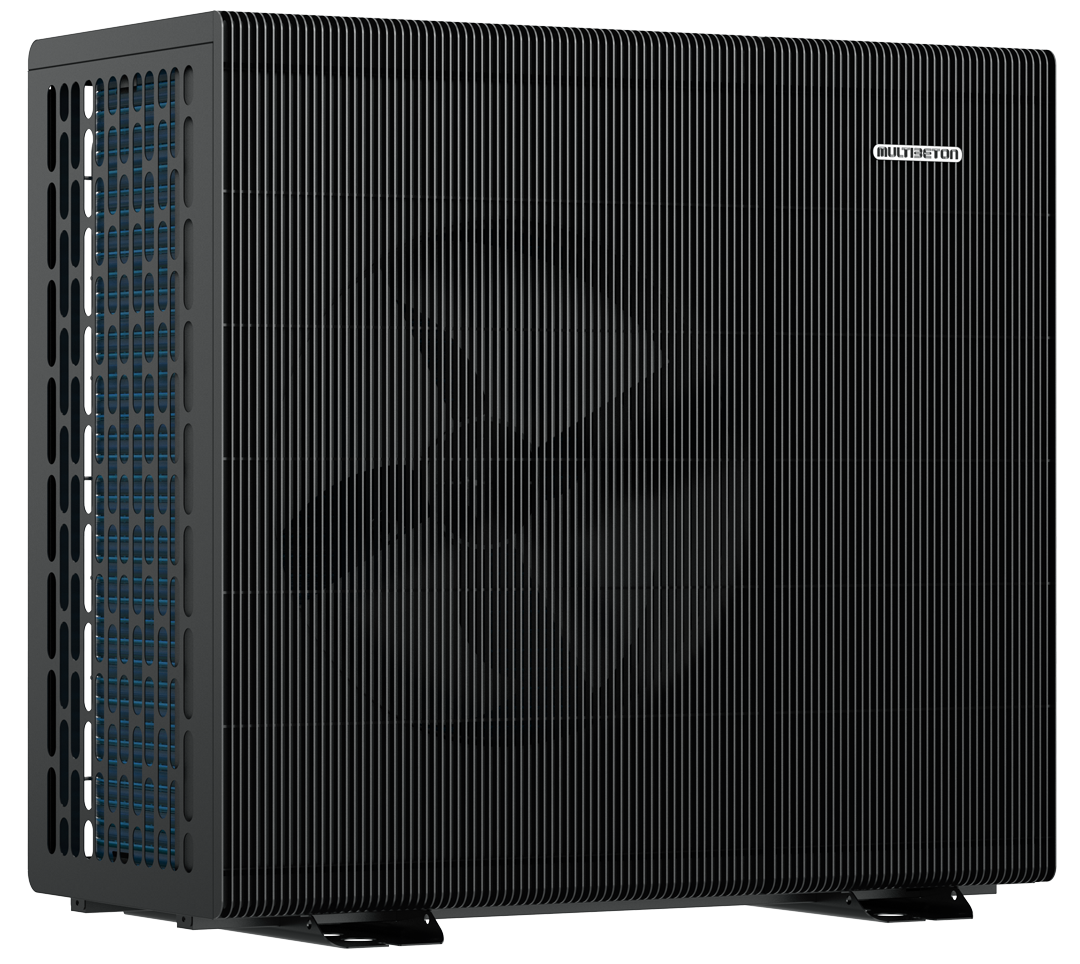

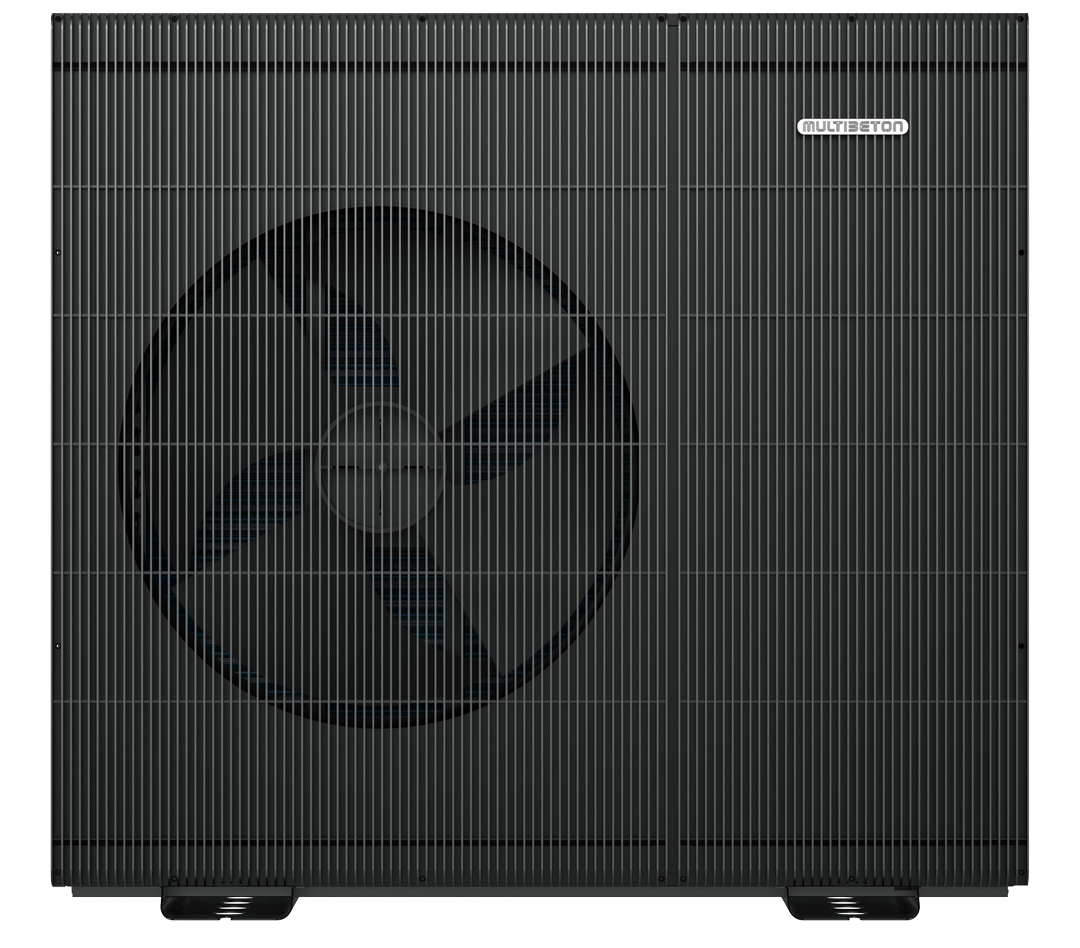

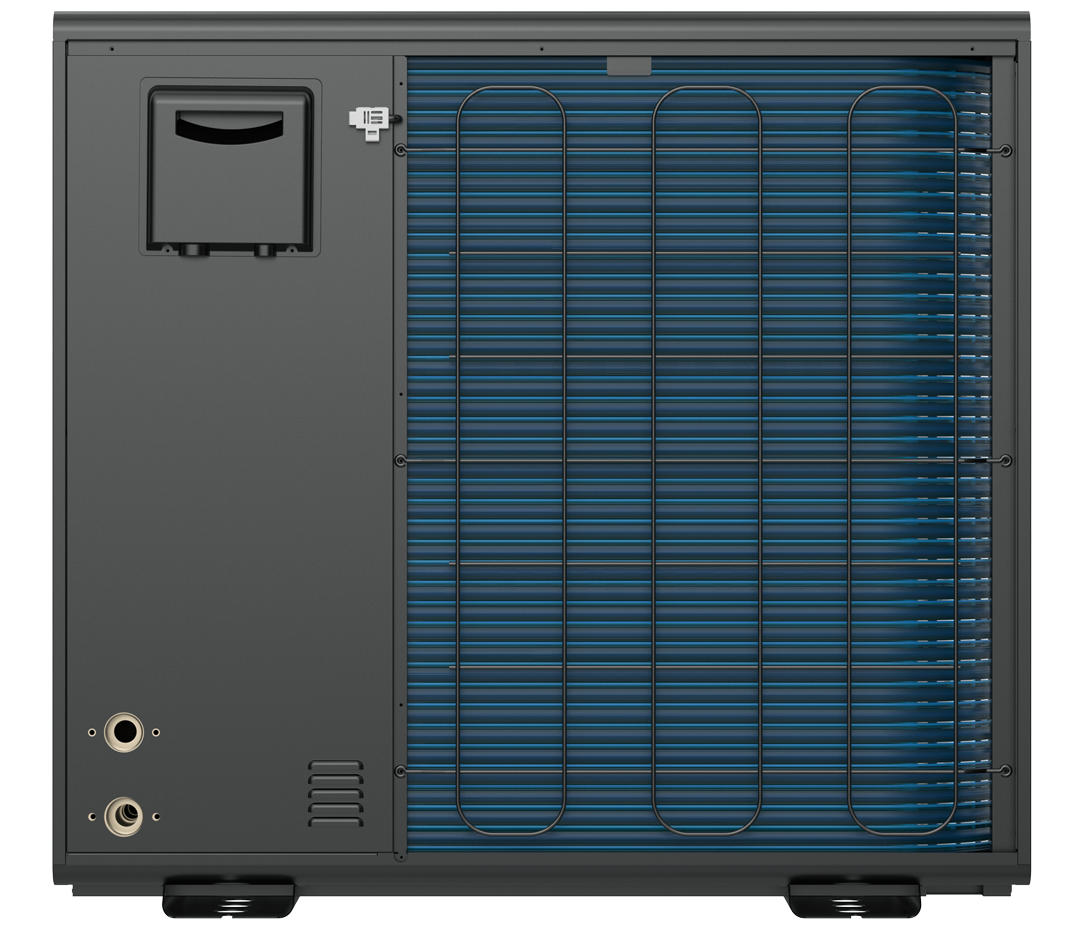

The Warmondo
“The efficient, quiet, and reliable heat pumps from MULTIBETON.”
The Warmondos are a specially designed product that meets our high MULTIBETON standards. During the production of both the outdoor and indoor units, extensive testing is conducted to ensure efficiency, quality, and durability.
Heating & Cooling
Using only a small amount of electricity, MULTIBETON’s Warmondo heat pumps can generate a considerable amount of heat or cooling. Warmondo units are a prime example of efficiency in modern heating and cooling technology.
The principle is as simple as it is amazing: As an air-to-water heat pump, Warmondo uses the energy from the ambient air and converts it into heat or cooling for your home. This process enables Warmondo to deliver more energy than it consumes.
Efficient & Eligible
Online Service & Warranty
Standard & Hybrid Systems
Renewable Energy
Perfect for Renovations
Touch, Wi-Fi and App
Quiet, Reliable and Smart

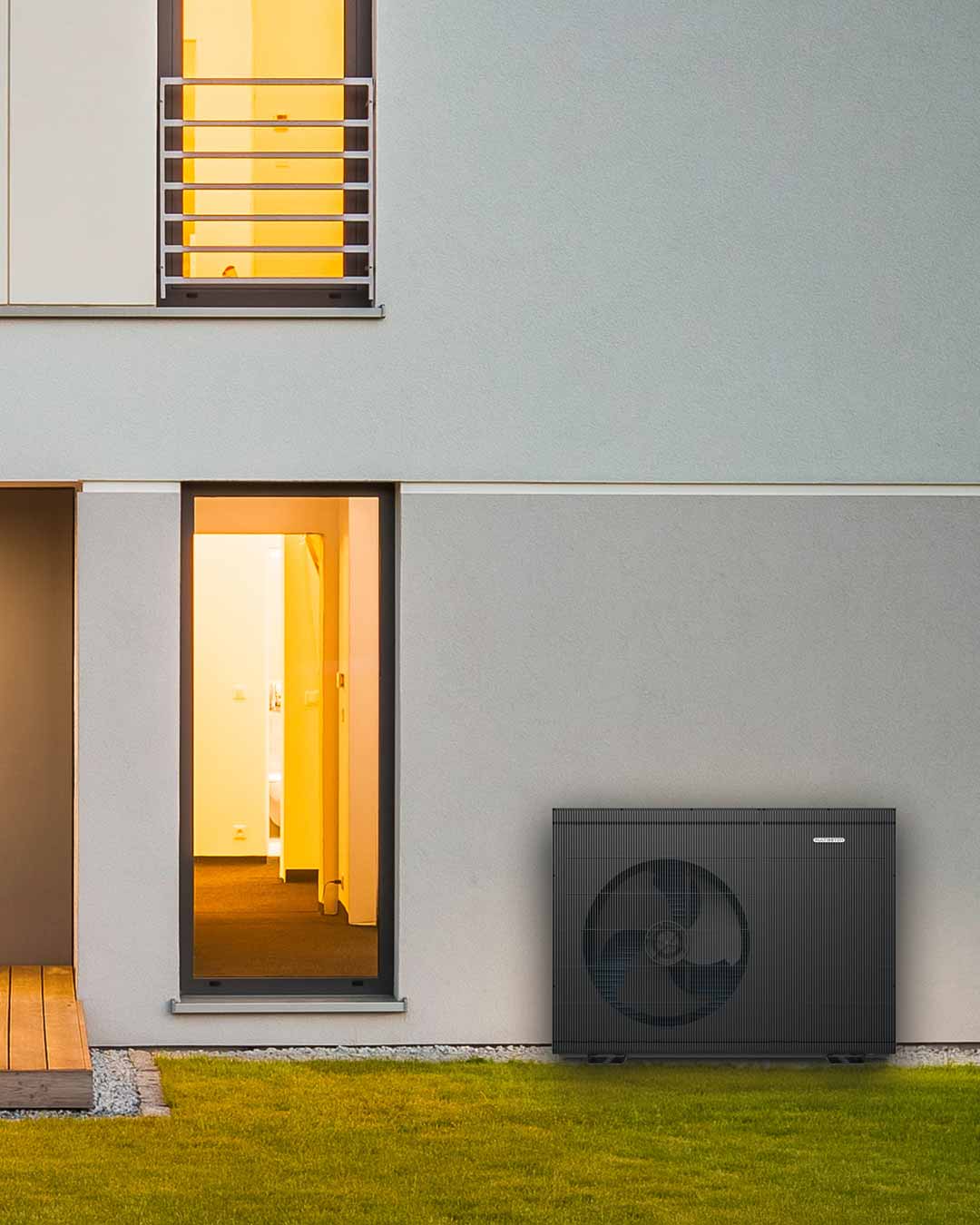

Thanks to its intelligent design and the careful selection of high-quality components, our Warmondo heat pump is whisper-quiet – ideal for residential areas and installation close to the home.
The proprietary algorithm adapts to the building’s actual heating and cooling demand to ensure high energy efficiency and low noise levels.
The refrigerant concentration inside the heat pump is continuously monitored. If it reaches or exceeds the specified safety threshold, an alarm is triggered and the power supply is immediately shut off.
Furthermore, a wide range of influencing factors are recorded and processed within an intelligent control network. And best of all: our smartphone app and remote maintenance portal ensure quick diagnostics and easy operation.
Technical Specifications
Warmondo heat pumps are manufactured and offered in 4 performance sizes.
Warmondo
WM-S (6 kW)
Warmondo
WM-M (9 kW)
Warmondo
WM-L (13 kW)
Warmondo
WM-XL (16 kW)
Central control

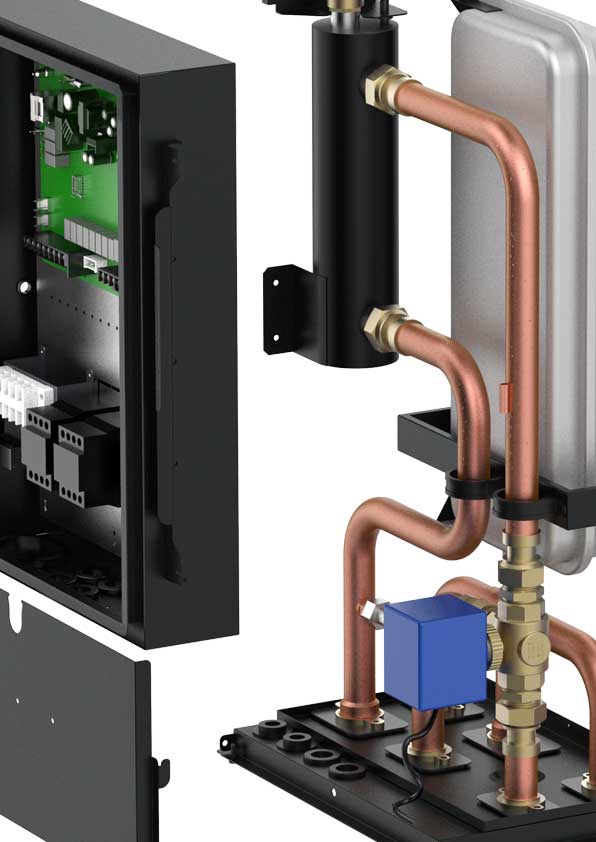

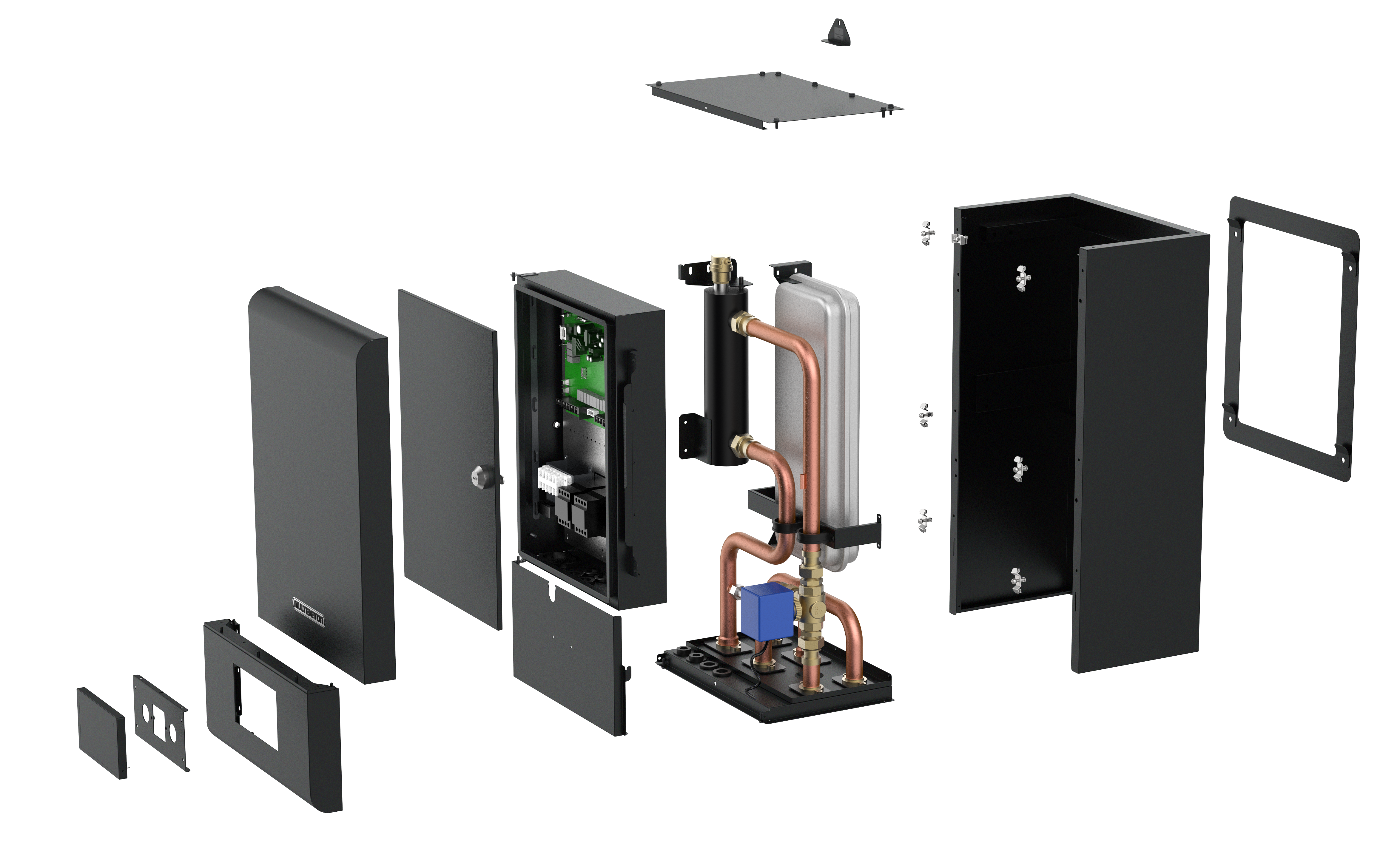

The Warmondo hydraulic station is wall-mounted, compact, and powerful. It can be flexibly combined with an adjacent hot water and buffer storage tank.
This allows for larger buffer volumes to be implemented, enabling optimal integration of a photovoltaic system or bridging during power outages.
Efficient & Eligible for Subsidies
Warmondo air-to-water heat pumps from MULTIBETON achieve the same efficiency levels in buildings with radiators as other air-to-water heat pumps in new buildings with underfloor heating. This is ensured by various technical refinements and innovations:
· Innovative optimization of fluid dynamics
· Double structure-borne sound decoupling
· Pressure-loss-optimized evaporator geometry
· Demand-based and predictive speed control (inverter)
The natural refrigerant propane (R290) used in the Warmondo heat pump is characterized by its excellent environmental profile and extremely low carbon footprint. It fully complies with the environmental requirements of the F-Gas Regulation.
Warmondo heat pumps are listed by BAFA in Germany and are eligible for subsidies.
Online Service & Warranty
If something ever goes wrong, our online service is here to support you for the entire lifespan of your Warmondo heat pump. You receive a 5-year warranty on key components such as
Standard & Hybrid Systems
If the heat pump's outdoor unit ever fails, the Warmondo hydraulic station is equipped with an electric backup heater. This ensures your home stays warm while the installer's emergency service comes to assist you.
Renewable Energy
The hydraulic station is designed to integrate additional renewable energy sources, such as solar power, via the buffer tank. The buffer tank can be combined with a fresh water station. The fresh water station is a compact unit for hygienic hot water production. Drinking water is heated only on de-mand, for example, when hot water storage is not desired for energy-saving reasons.
Touch, Wi-Fi and App
The hydraulic station features an intuitive touchscreen interface with controls designed to blend seamlessly into the building's interior, a high-quality color display, and the option of internet connectivity via Wi-Fi. Warmondo heat pumps can be controlled via the hydraulic station using an app.
Efficient & Eligible for Subsidies
Warmondo air-to-water heat pumps from MULTIBETON achieve the same efficiency levels in buildings with radiators as other air-to-water heat pumps in new buildings with underfloor heating. This is ensured by various technical refinements and innovations:
· Innovative optimization of fluid dynamics
· Double structure-borne sound decoupling
· Pressure-loss-optimized evaporator geometry
· Demand-based and predictive speed control (inverter)
The natural refrigerant propane (R290) used in the Warmondo heat pump is characterized by its excellent environmental profile and extremely low carbon footprint. It fully complies with the environmental requirements of the F-Gas Regulation.
Warmondo heat pumps are listed by BAFA in Germany and are eligible for subsidies.
Technical Specifications
Warmondo WM-S (6 kW)
Performance rating (A2/W35): 6 kW
Rated heating capacity (EN 14511): 4.9 kW
SCOP (EN 14825): 5.08
Energy efficiency class (EN 14825): A+++/A++
Sound pressure level at 1 m: 31 dB(A)H
Heating
Heating capacity (A2/W35): 5.97 kW
Power consumption: 1.51 kW
Operating current: 6.67 A
Max. power consumption: 2.80 kW
Max. operating current: 14.40 A
Max. supply water temperature: 75 °C
Outdoor temperature: -25 to +43 °C
Power supply: 230 V/1~/50 Hz
Nominal water flow rate: 1.03 m³/h
Refrigerant: R290
Protection rating: IPX4
Protection class: I
Net weight: 146 kg
Unit dimensions: 1,102 × 557 × 1,021 mm
Cooling
Cooling capacity: 4.91 kW
Power consumption: 1.60 kW
Operating current: 7.03 A
EER: 4.32
Technical Specifications
Warmondo WM-M (9 kW)
Performance rating (A2/W35): 9 kW
Rated heating capacity (EN 14511): 7.1 kW
SCOP (EN 14825): 5.05
Energy efficiency class (EN 14825): A+++/A++
Sound pressure level at 1 m: 38 dB(A)H
Heating
Heating capacity (A2/W35): 8.48 kW
Power consumption: 2.20 kW
Operating current: 9.40 A
Max. power consumption: 4.50 kW
Max. operating current: 19.80 A
Max. supply water temperature: 75 °C
Outdoor temperature: -25 to +43 °C
Power supply: 230 V/1~/50 Hz
Nominal water flow rate: 1.55 m³/h
Refrigerant: R290
Protection rating: IPX4
Protection class: I
Net weight: 160 kg
Unit dimensions: 1,102 × 557 × 1,021 mm
Cooling
Cooling capacity: 6.96 kW
Power consumption: 2.23 kW
Operating current: 9.79 A
EER: 4.31
Technical Specifications
Warmondo WM-L (13 kW)
Performance rating (A2/W35): 13 kW
Rated heating capacity (EN 14511): 10.0 kW
SCOP (EN 14825): 5.05
Energy efficiency class (EN 14825): A+++/A++
Sound pressure level at 1 m: 39 dB(A)H
Heating
Heating capacity (A2/W35): 12.67 kW
Power consumption: 3.30 kW
Operating current: 4.83 A
Max. power consumption: 5.40 kW
Max. operating current: 8.25 A
Max. supply water temperature: 75 °C
Outdoor temperature: -25 to +43 °C
Power supply: 400 V/3~/50 Hz
Nominal water flow rate: 2.20 m³/h
Refrigerant: R290
Protection rating: IPX4
Protection class: I
Net weight: 205 kg
Unit dimensions: 1,377 × 557 × 1,021
Cooling
Cooling capacity: 9.13 kW
Power consumption: 2.99 kW
Operating current: 4.55 A
EER: 4.34
Technical Specifications
Warmondo WM-XL (16 kW)
Performance rating (A2/W35): 16 kW
Rated heating capacity (EN 14511): 12.9 kW
SCOP (EN 14825): 5.07
Energy efficiency class (EN 14825): A+++/A++
Sound pressure level at 1 m: 38 dB(A)H
Heating
Heating capacity (A2/W35): 15.28 kW
Power consumption: 4.04 kW
Operating current: 5.93 A
Max. power consumption: 5.80 kW
Max. operating current: 8.90 A
Max. supply water temperature: 75 °C
Outdoor temperature: -25 to +43 °C
Power supply: 400 V/3~/50 Hz
Nominal water flow rate: 2.75 m³/h
Refrigerant: R290
Protection rating: IPX4
Protection class: I
Net weight: 212 kg
Unit dimensions: 1,377 × 557 × 1,021 mm
Cooling
Cooling capacity: 11.80 kW
Power consumption: 3.78 kW
Operating current: 5.81 A
EER: 4.38
Warmondo WM-HDS (Hydraulic station)
Technical data
Max. heating capacity: 9 kW
Power supply: 400 V/3~/50 Hz
Max. operating current : 13.7 A
Max. flow temperature: 75 °C
Connections for supply/return: 5/4“
Connections for domestic hot water: 1“
Connections for heating water: 1“
Sound pressure level at 1 m: 30 dB(A)
Unit dimensions (W×D×H): 418 × 310 × 750 mm
Net weight: 35 kg
Protection rating: IPX1
Protection class: I
